Calculation of K Value for Braced and Unbraced Frames

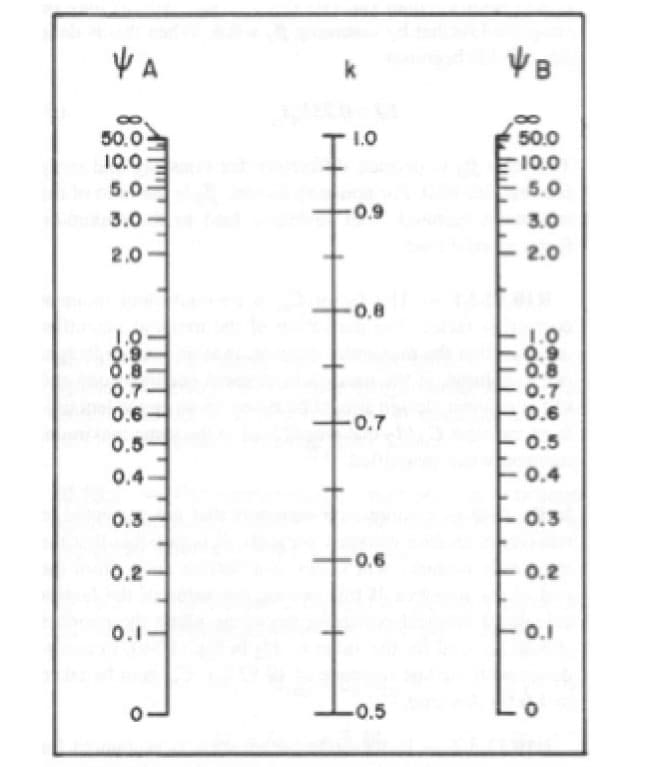

The Jackson and Moreland charts are fundamental tools in structural design, specifically in determining critical values for the effective length factor k in axially compressed members. These charts, based on a series of structural assumptions, have been developed to simplify the calculation process, offering a visual representation of relationships between different parameters.
This application utilizes the underlying equations of the Jackson and Moreland charts, allowing engineers to directly input ga and gb values to efficiently obtain k values, avoiding manual interpretation of charts and improving the accuracy of structural design.
With lateral bracing
When we talk about lateral bracing, we refer to the presence of systems, such as shear walls or a defined lateral bracing, that prevent horizontal movement.
